Note: It's a DIY kit, you need to solder it to the PAX100 by yourself.

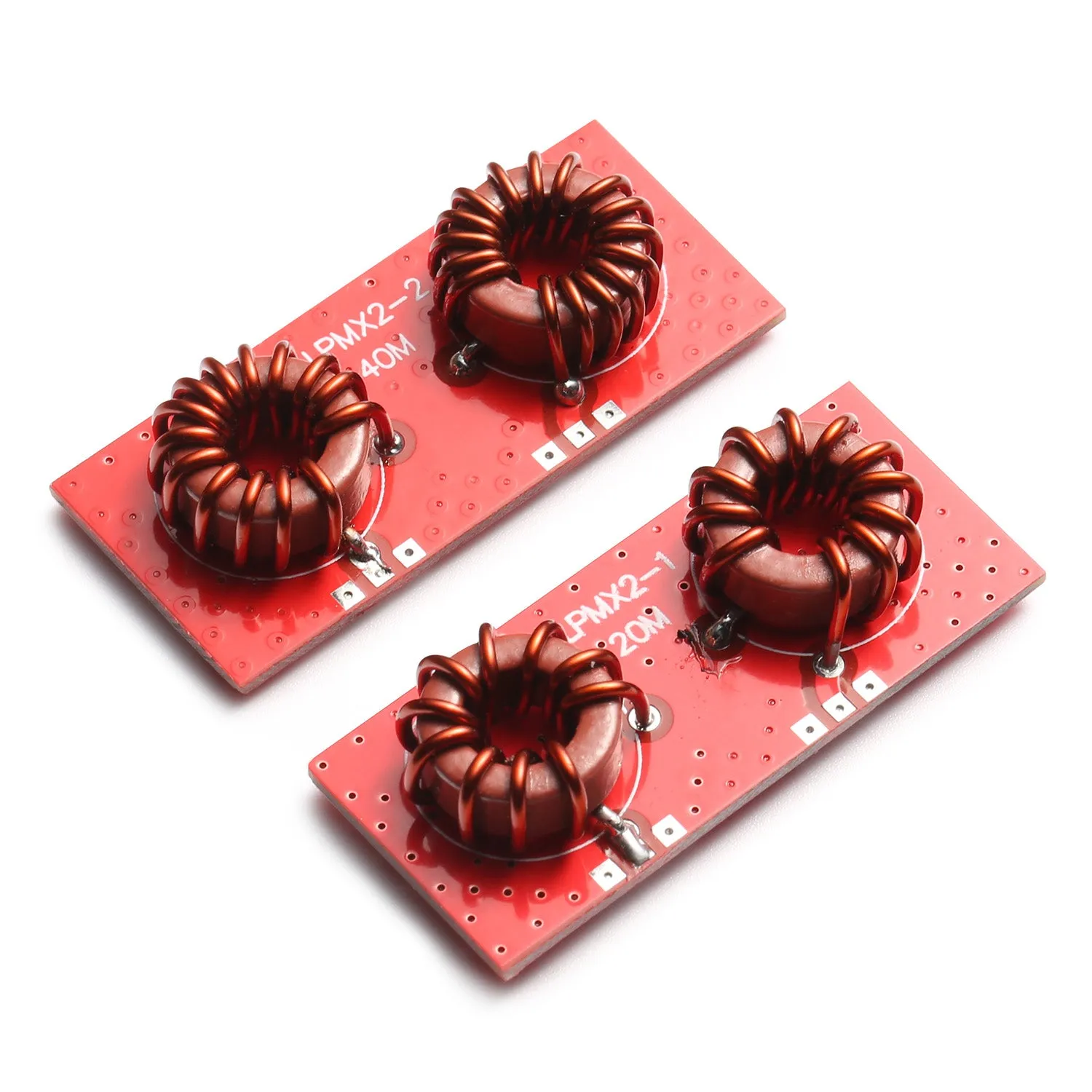

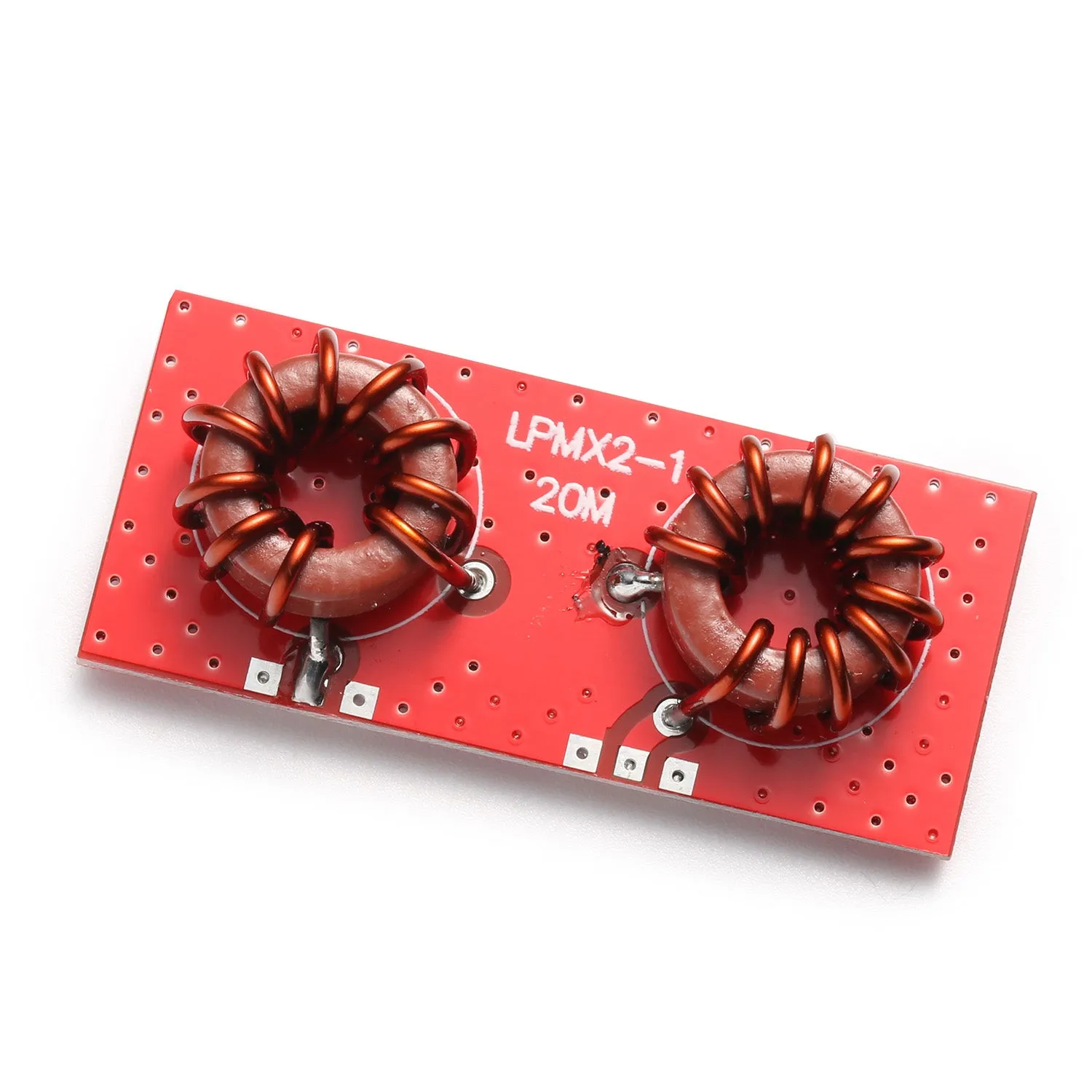

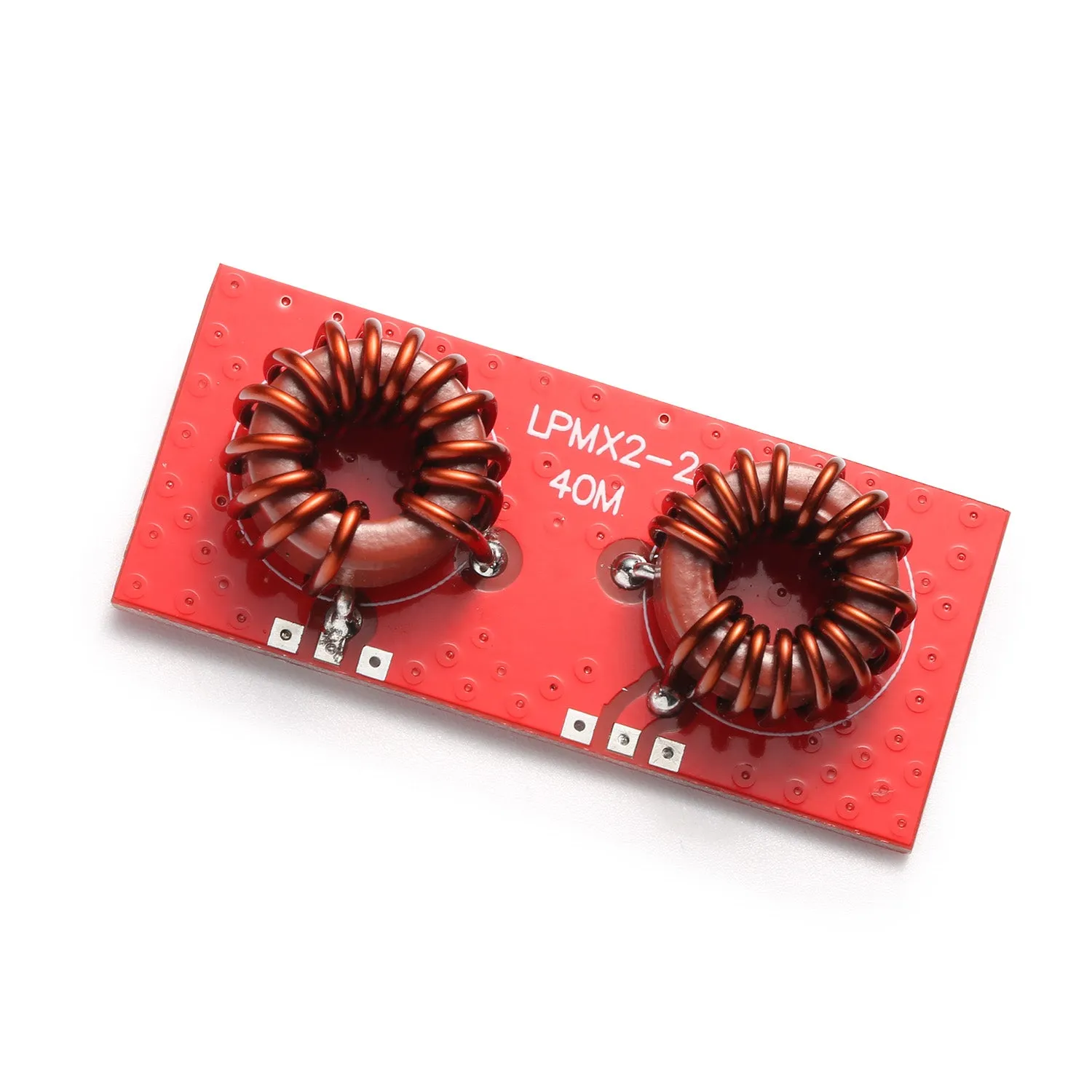

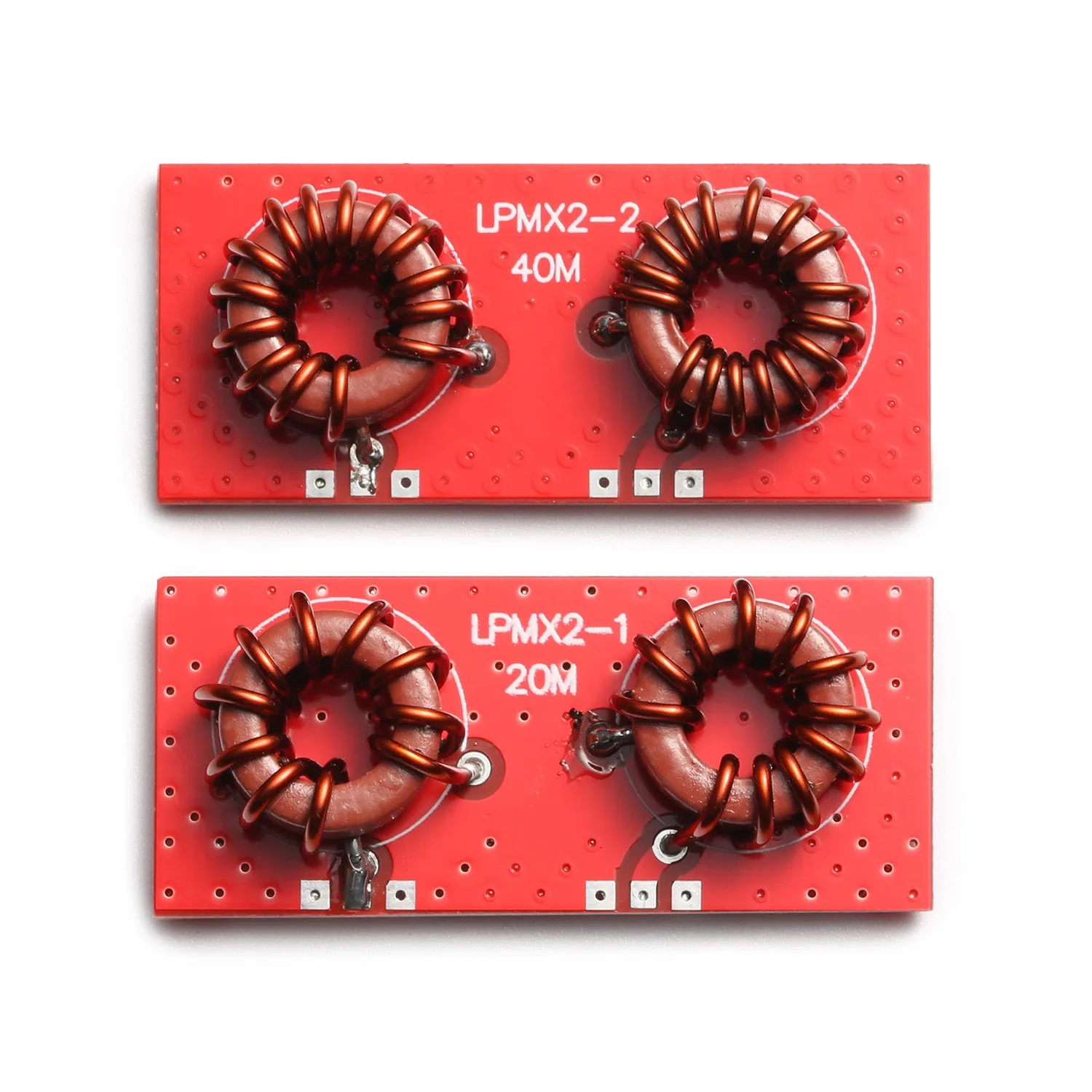

Radioddity LPMX2 Low Pass Filter is designed for RF power amplifier and other devices, mainly used to suppress transmitter harmonics during transmission and reception. It also provides some pre-selection filtering on receive.

Specifications
Frequency Range: 120M, 40M
Input Power: 100W CW, 200W SSB
Harmonic suppression: >30dB
Power supply voltage: 12V-16V
Working current: 100ma
Working temperature: -15℃～55℃
Storage temperature: -30℃～75℃

Warning
1. The filter is designed for the PAX-100 and achieves the best performance with it.
2. When used with other radios or devices, slight degradation of performance can be expected.
3. Working Voltage: 13.8V | Working Current: 0.1- 0.5A
4. Maximum Input Power: 100W for CW, 200W for SSB. Exceeding the rated power levels may cause damage to the filter.
5. Harmonic suppression：
20M, 40M＞30db

What’s in the box
1 x Radioddity LPMX2 Low Pass Filter
